Terminal Velocity TV-202 fighter 3D printable model

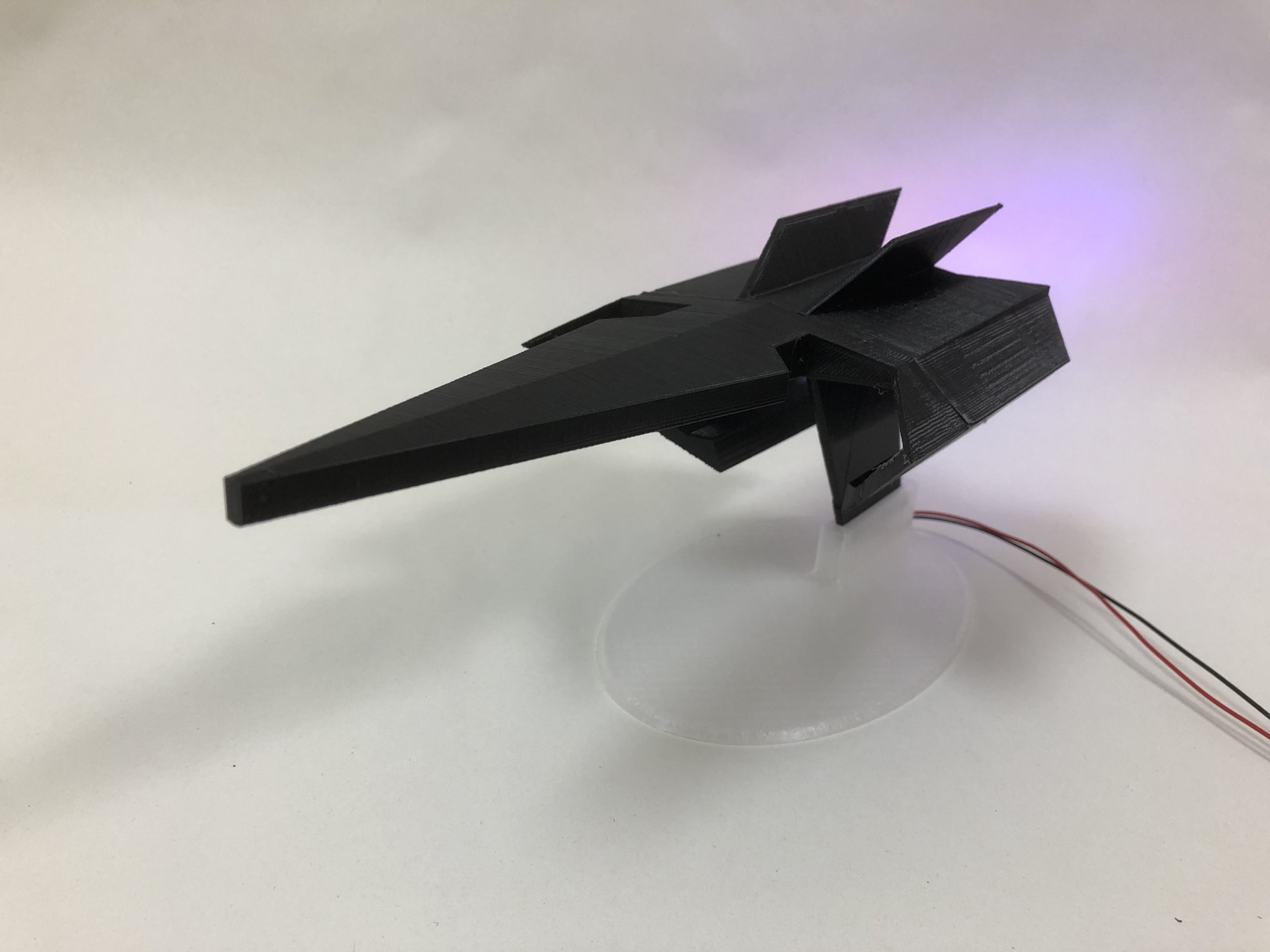

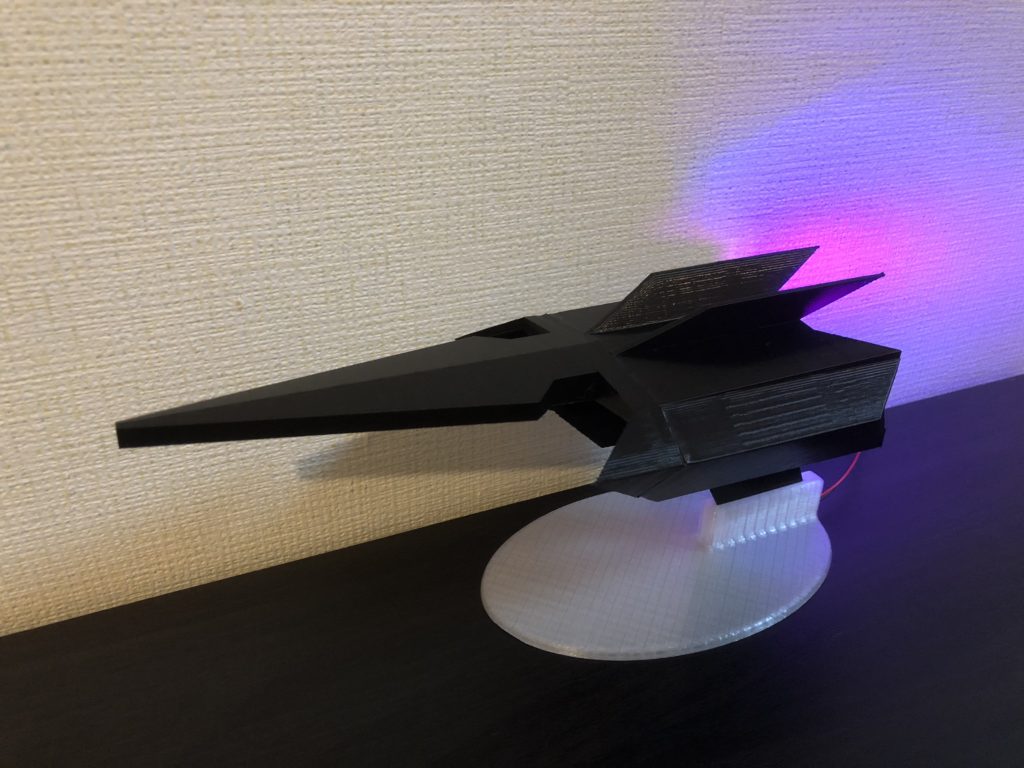

This is the TV-202 starship from the computer game Terminal Velocity (1995).

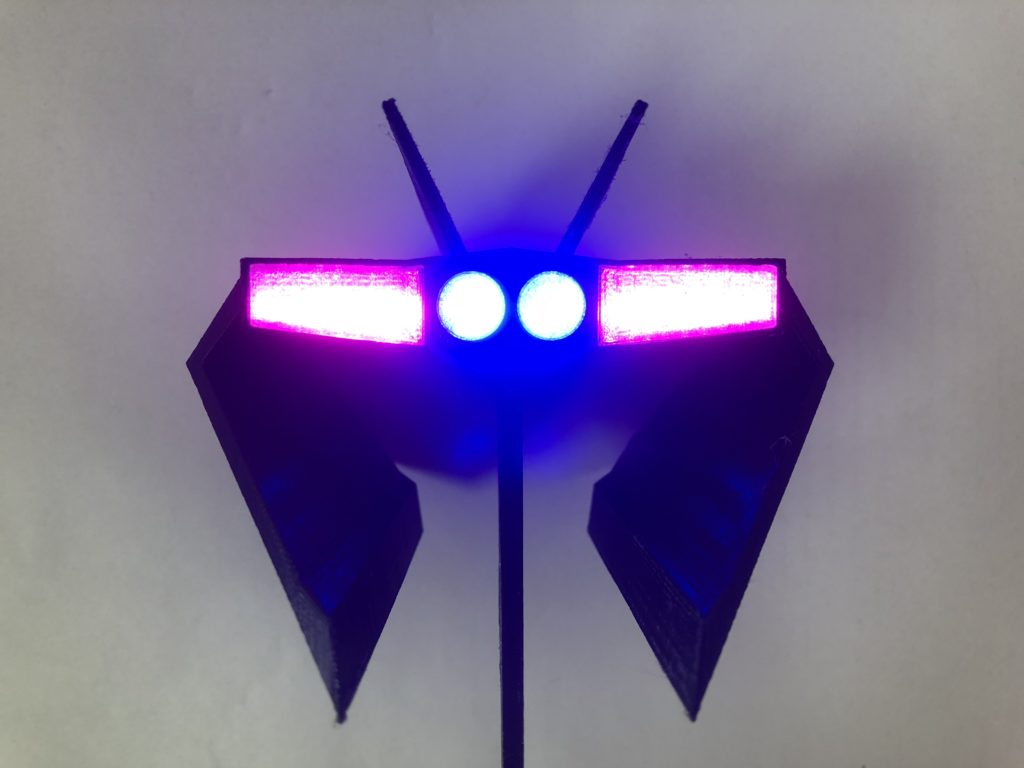

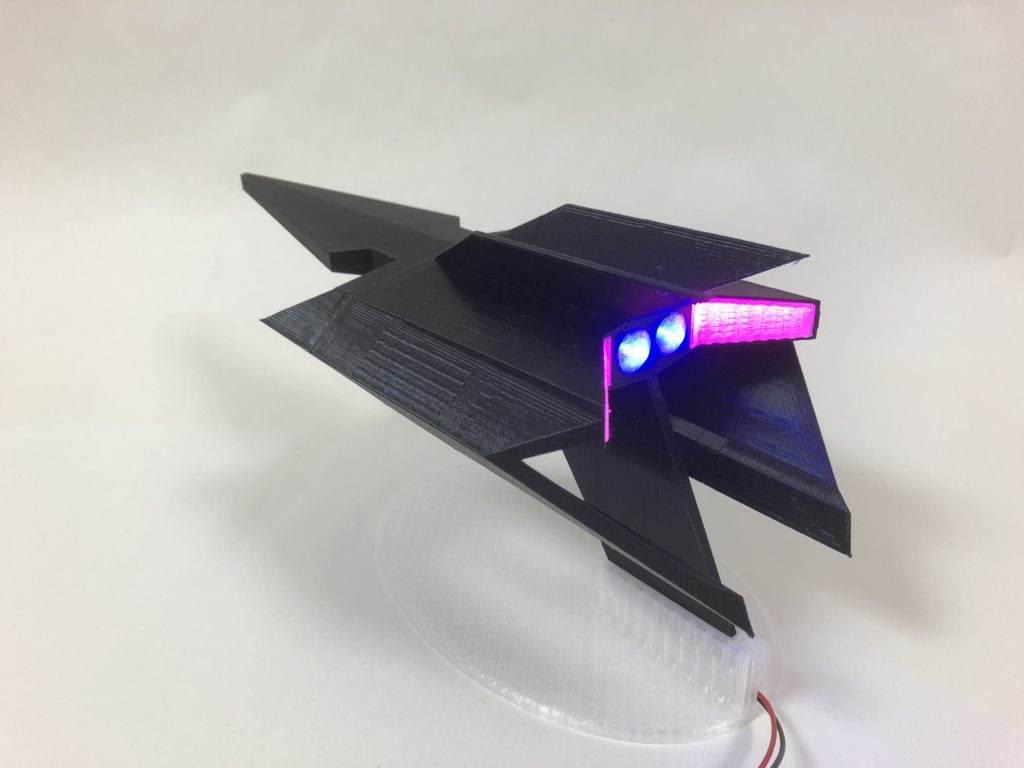

The model has LEDs to light up the engines.

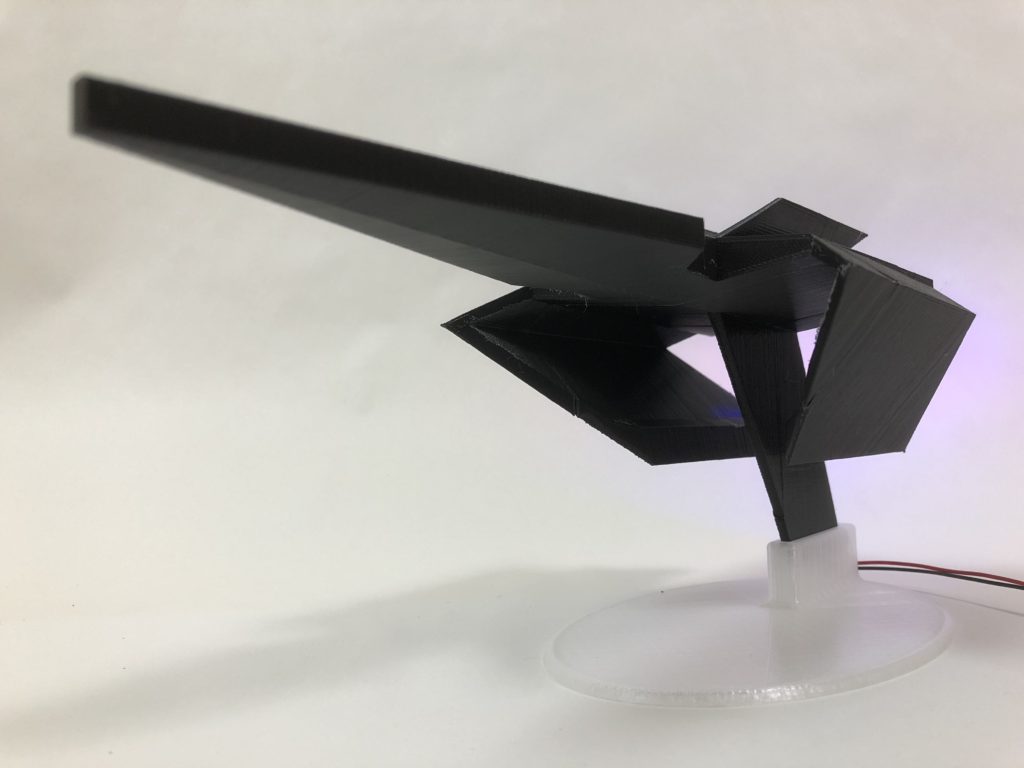

The wiring runs through the tail directly to the stand.
Design & Print time lapse
Model files
Print Settings
- Rafts: No
- Supports: No
- Resolution: 0.15 mm
- Infill: 20%
- Filament material: PLA black & transparent
- Notes: Use a brim when printing the front and rear of the ship.
Things you need
- 4 pink 5mm LEDs
- 2 blue 5mm LEDs
- a power supply
- resistors (220 ohm should work fine if you use a 5V power supply)
- wire thin enough to fit though the tail
Assembly
There are six slots for the LEDs at the rear of the ship. After printing, punch a hole though the bottom of the slots and check that the LEDs fit inside. Solder a resistor in series with each LED, then wire them in parallel. Insert each LED though the peg hole and fit it trough the holes at the rear of the model (blue in the center, pink in on the side). The wiring must run through the hollow tail, then to the hole at the rear of the stand.
